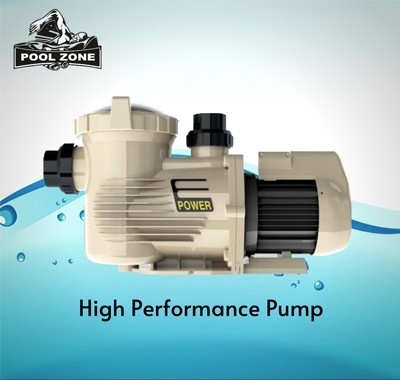

EPH Series E-Power High Performance Pump
We are importing a wide range of swimming pool pumps that are mainly used in water treatment applications. These are well appreciated for operational efficiency, precise engineering and durability.
Product Details
| Power | Class insulation |
| Type | Asynchronous, Two poles |
“EPH” series heavy duty pump delivers high flow and energy efficiency ultra performance. It is suitable for commercial swimming pool. It has a 2” suction and a discharge port with transparent lid. The Ring lock seal was designed to eliminate suction leaks and to maximize suction efficiency.
| Code | Model No | Connection Size | Input Power | Horsepower | Weight(Kg) | |
|---|---|---|---|---|---|---|
| 88020708 | pz49 | 2 inch | 2.5 inch | 1.80kW | 2.0hp | 23.00 |
| 88020709 | pz50 | 2 inch | 2.5 inch | 2.18kW | 3.0hp | 24.00 |
| 88020718 | pz51 | 2 inch | 2.5 inch | 2.60kW | 4.0hp | 25.00 |
Features
- Asynchronous, two-pole motor
- Class insulation: 130
- IPX5 waterproof standard
- Built-in thermal protection
- Overload protection
- Available in 50Hz with 220V / 380V
- Specially designed union compatible with both imperial and metric measurement standards
- S.S. 316 shaft
- S.S. 316 mechanical seal
