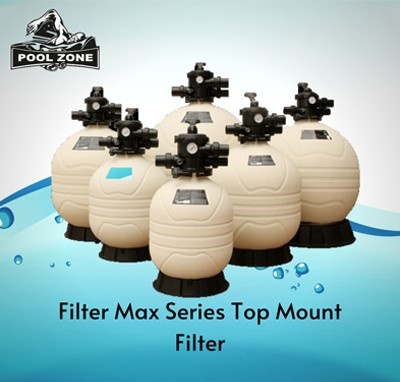

Filter Max Series Top Mount Filter
We are engaged in supplying swimming pool filters to various hotels, clubs, resorts & farm houses. These Swimming Pool Filters are made of non-corrosive materials which suit all weather conditions. These filters are easy to use and have UV stabilizing capability
Product Details
| Value Connections | 1.5 inch |
| Max flow rate | 117 lpm |
| Sand | 40 Kg |
Features
- Compact and heavy duty.
- Made of high density polyethylene.
- Designed for most domestic swimming pools or spa pools.
- Valve is designed to allow 360 degree rotation to simplify installation.
- Easy-to-use water drain plug and multi-port valve lets you select any of the valves.
- filter operation with a simple lever-action.
| Code | Model no | Filtration area(m2) | Value Connections | Max.flow rate | Sand (kg) | ||
|---|---|---|---|---|---|---|---|
| 88012526 | pz37 | 0.14 | 1.5 inch | 50 mm | 117lpm | 7.0m3/h | 40 |
| 88012527 | pz38 | 0.20 | 1.5 inch | 50 mm | 167lpm | 10.0m3/h | 70 |
| 88012528 | pz39 | 0.28 | 1.5 inch | 50 mm | 233lpm | 14.0m3/h | 125 |
| 88012529 | pz40 | 0.36 | 1.5 inch | 50 mm | 240lpm | 14.4m3/h | 185 |
| 88012530 | pz41 | 0.36 | 2.0inch | 63 mm | 300lpm | 18.0m3/h | 185 |
| 88012531 | pz42 | 0.47 | 1.5 inch | 50 mm | 313lpm | 18.8m3/h | 320 |
