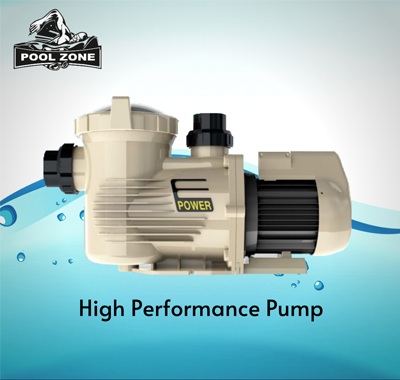

EPH Series E-Power High Performance Pump

We are importing a wide range of swimming pool pumps that are mainly used in water treatment applications. These are well appreciated for operational efficiency, precise engineering and durability.

Product Details:
Power Class insulation
Type Asynchronous, Two poles

“EPH” series heavy duty pump delivers high flow and energy efficiency ultra performance. It is suitable for commercial swimming pool. It has a 2” suction and a discharge port with transparent lid. The Ring lock seal was designed to eliminate suction leaks and to maximize suction efficiency.

Code Model No Connection Size Input Power Horsepower Weight(Kg)
88020708 pz49 2 inch 2.5 inch 1.80kW 2.0hp 23.00
88020709 pz50 2 inch 2.5 inch 2.18kW 3.0hp 24.00
88020718 pz51 2 inch 2.5 inch 2.60kW 4.0hp 25.00
Features
  • Asynchronous, Two poles.
  • Class insulation: 130
  • IPX5 Waterproof standard.
  • Built-in thermal protection.
  • Overload protection.
  • Available in 50Hz with 220V/380V
  • Special design union compatible for both Imperial and Metric measurement standard.
  • S.S 316 shaft.
  • S.S 316 Mechanical seal.
