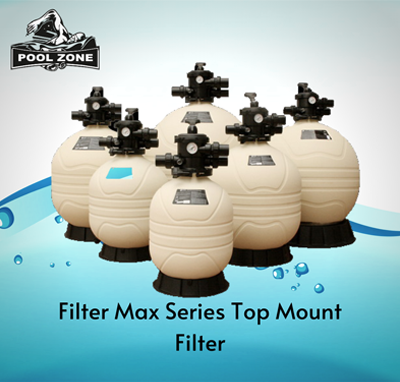

Filter Max Series Top Mount Filter

We are engaged in supplying swimming pool filters to various hotels, clubs, resorts & farm houses. These Swimming Pool Filters are made of non-corrosive materials which suit all weather conditions. These filters are easy to use and have UV stabilizing capability.

Product Details:
Value Connections 1.5 inch
Max flow rate 117 lpm
Sand 40 Kg
Features:
  • Compact and heavy duty.
  • Made of high density polyethylene.
  • Designed for most domestic swimming pools or spa pools.
  • Valve is designed to allow 360 degree rotation to simplify installation.
  • Easy-to-use water drain plug and multi-port valve lets you select any of the valves.
  • filter operation with a simple lever-action.
Code Model no Filtration area(m2) Value Connections Max.flow rate Sand (kg)
88012526 pz37 0.14 1.5 inch 50 mm 117lpm 7.0m3/h 40
88012527 pz38 0.20 1.5 inch 50 mm 167lpm 10.0m3/h 70
88012528 pz39 0.28 1.5 inch 50 mm 233lpm 14.0m3/h 125
88012529 pz40 0.36 1.5 inch 50 mm 240lpm 14.4m3/h 185
88012530 pz41 0.36 2.0inch 63 mm 300lpm 18.0m3/h 185
88012531 pz42 0.47 1.5 inch 50 mm 313lpm 18.8m3/h 320
